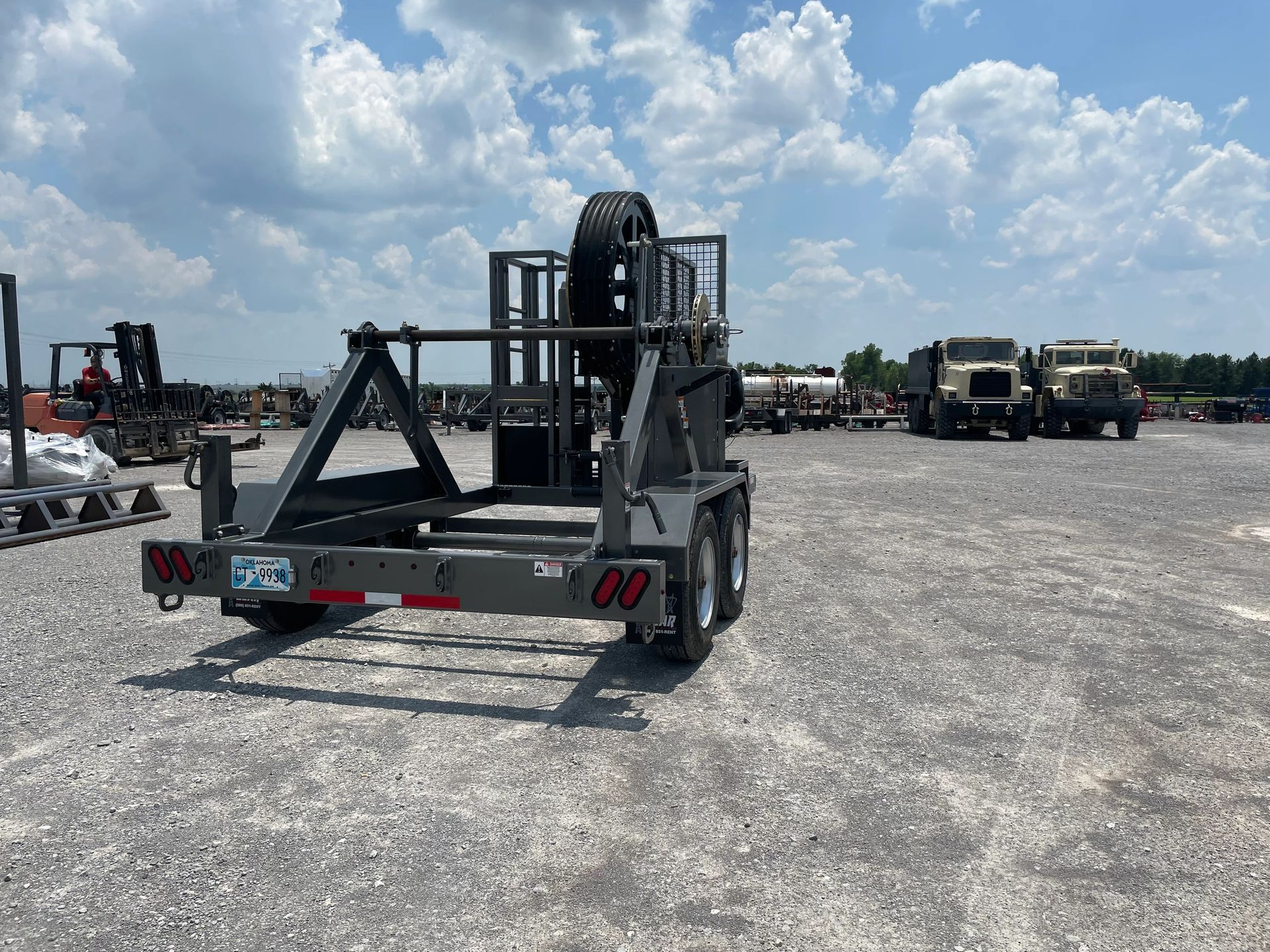

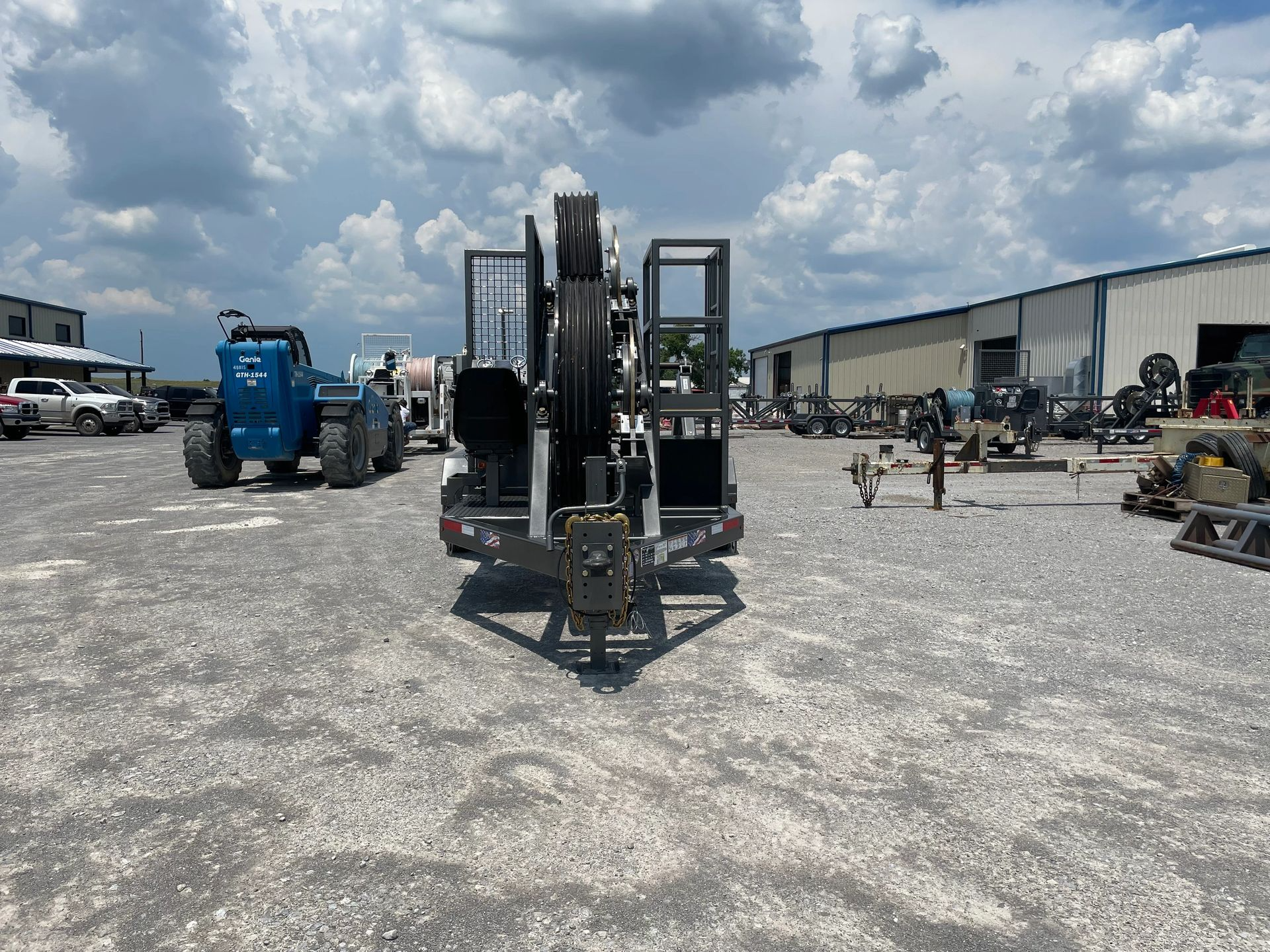

Dimensions and Weights

Length: 20' 5"

Width: 100" OAW

Height: 9' 9"

G.V.W.R.: 20,500 lbs.

Empty Weight: 7,100 lbs.

Payload: Approximately 13,400 lbs

Standard Features

Running Gear: Two 10,000 lb. single wheel axle with oil bath hubs

Brakes: 12 1/4" x 3-3/8" electric with self-charging break-away system

Landing Gear & Rear Jacks: 12,000 lb. static drop leg jack

Wheels: 16" 8-hole Steel

Tires: 235/'80R 16" 14-Ply

Frame: 6x4 rectangular tubing

Lights: Sealed beam with waterproof wiring in nylon tubing

Toolbox: 18" x 18" x 30"

Unit Performance

Continuous Rated Tension: 5,000 lbs

Line Speed: 0-4 MPH

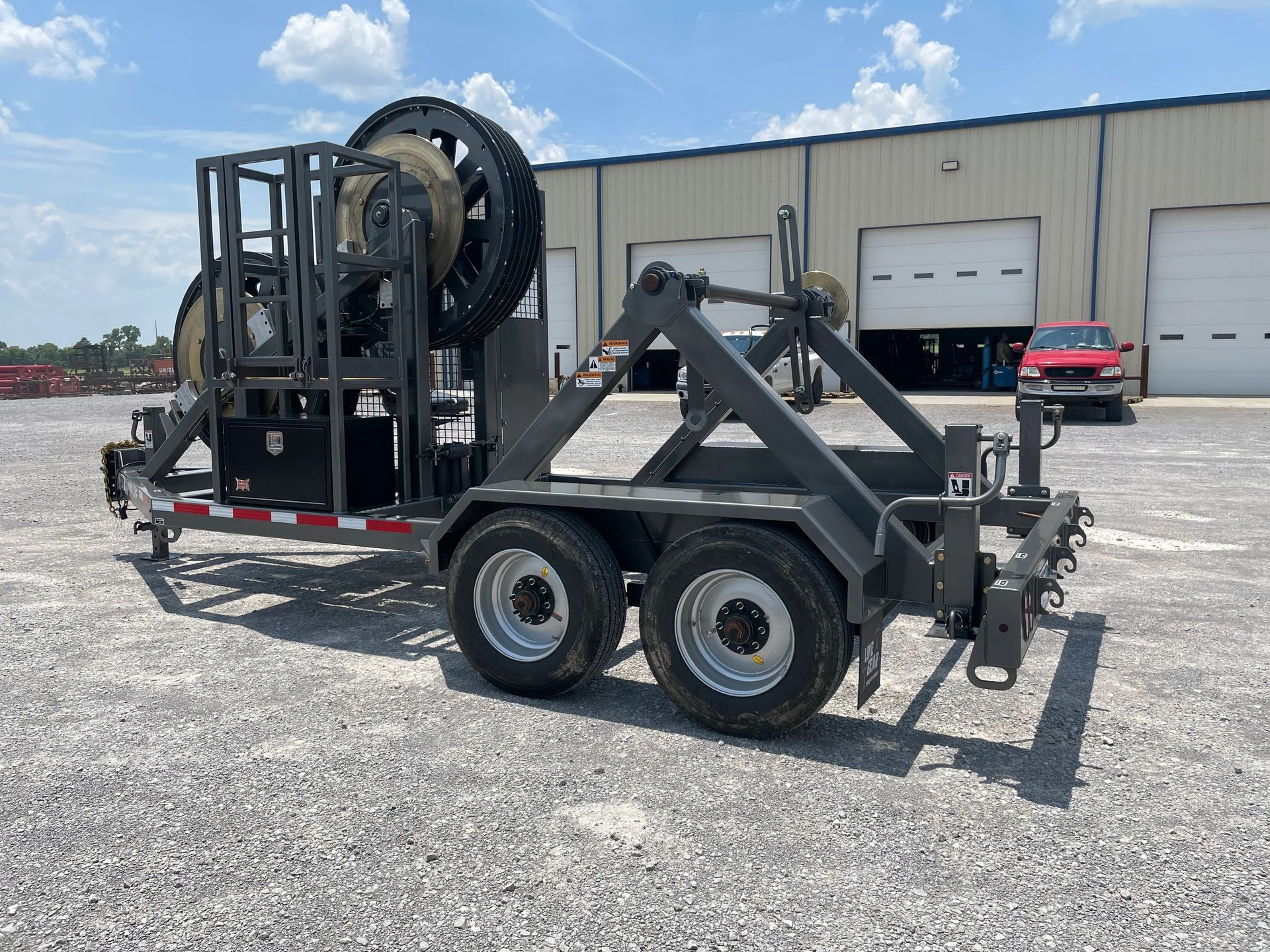

Reel Capacity

Maximum Reel Diameter: 96"

Maximum Reel Width: 60"

Maximum Reel Weight: 12,000 lbs

Shaft Diameter: 2 5/8"

Shaft Loading: Quick Change reel shaft with accompanying hooks

Reel Brake: Hydraulic actuated calipers from operator station with 16" diameter bronze rotor

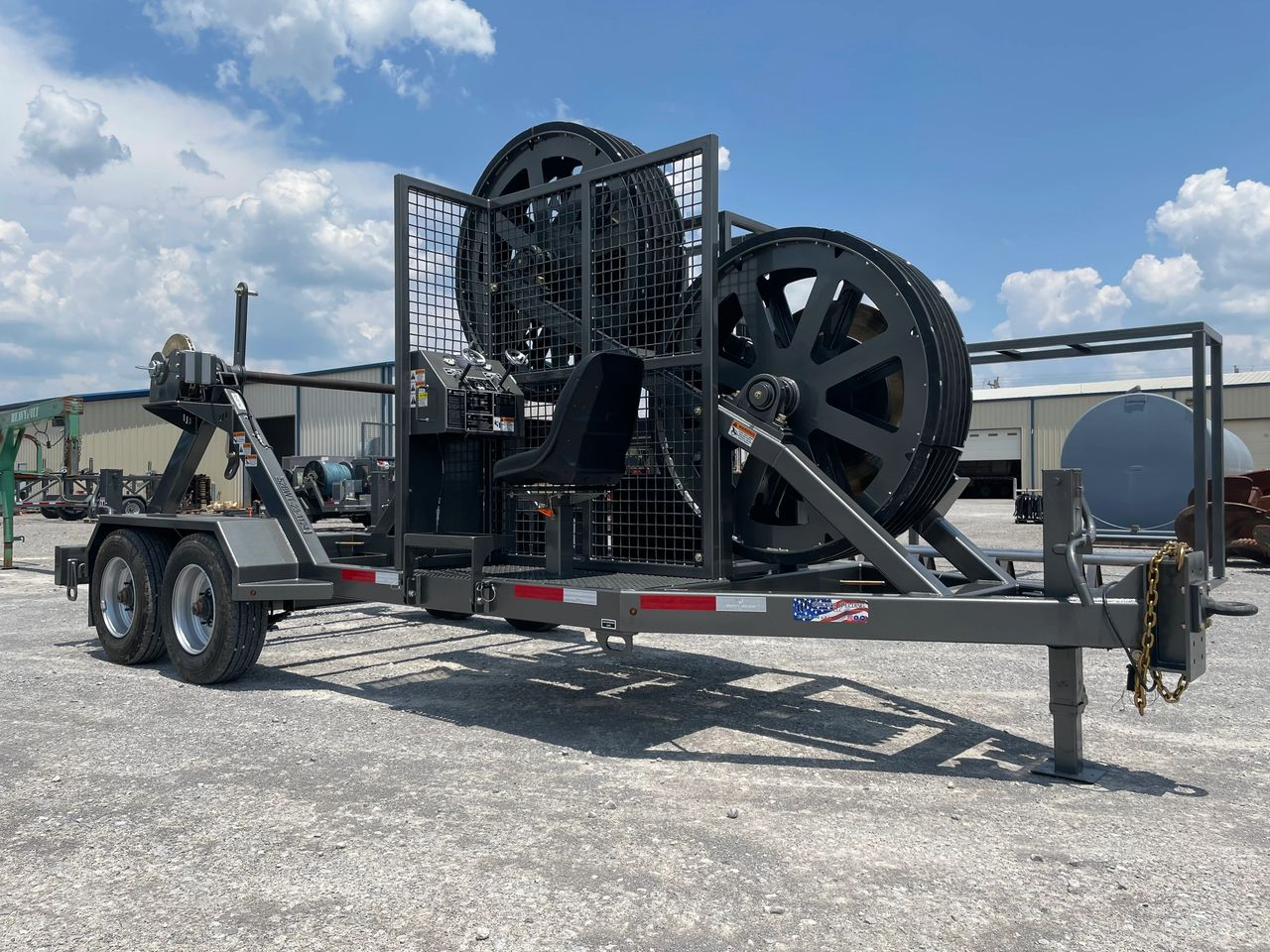

Standard Features

Reel Diameter: 52" OD

Reel Width: 12"

Conductor Grooves: 5 at 1-1/2" diameter

Bullwheel Brakes: Hydraulic actuated calipers from operator station with 36" diameter A588 rotors

Conductor Guide: 5 roller fairlead to insure proper alignment with quick flip latch to allow operator to run left or right hand lay cable
